제품 세부 정보
원래 장소: 중국 선전
브랜드 이름: WONSUN
인증: CE, ISO
모델 번호: DZ-138
지불 및 배송 조건
최소 주문 수량: 1개
가격: 협상 가능
포장 세부 사항: 먼저 버블 랩으로 포장 한 다음 외부 포장을 위해 상자로 강화했습니다.
배달 시간: 지불을받은 후 3-7 일
지불 조건: L/C, D/A, D/P, T/T, 서부 동맹
공급 능력: 3000 세트/월
특징: |
내구성이 뛰어난 LED 캐비닛 |
속도: |
0.9S-8S 조정 가능 |
맥스 암 길이: |
6m 직선 암/4.5m 2개의 펜스 암 |
정격 출력: |
200W |
운전 방법: |
서보 모터 |
전원공급장치: |
AC100-265V |
MTBF: |
천만 |
자동차 무부하 속도: |
3000r/분 |
특징: |
내구성이 뛰어난 LED 캐비닛 |
속도: |
0.9S-8S 조정 가능 |
맥스 암 길이: |
6m 직선 암/4.5m 2개의 펜스 암 |
정격 출력: |
200W |
운전 방법: |
서보 모터 |
전원공급장치: |
AC100-265V |
MTBF: |
천만 |
자동차 무부하 속도: |
3000r/분 |

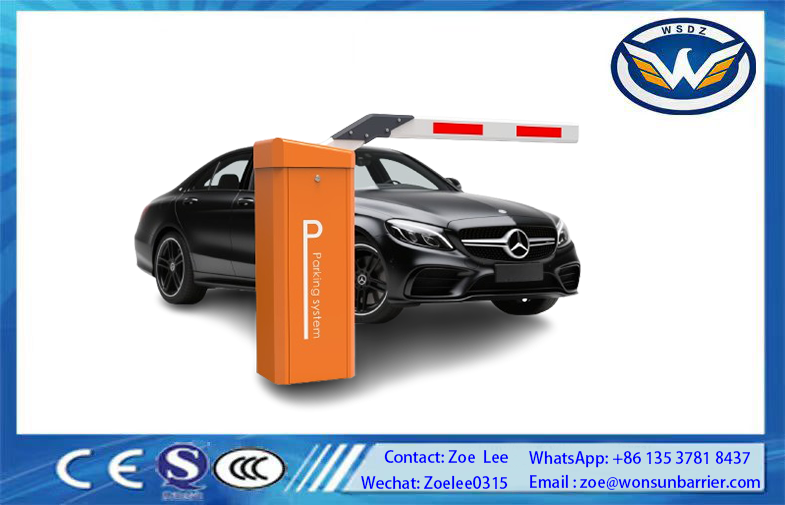

High-Speed Servo Barrier Gate for Parking & Highway Traffic Control
Product Overview
Shenzhen Wonsun Machinery & Electrical Technology Co., Ltd. presents the DC 2nd Gen Servo High-Speed Barrier Gate, a next-generation traffic control solution engineered for efficiency, safety, and reliability. As a patented product, this barrier gate (also known as traffic barrier, parking barrier, and highway barrier) is powered by a 2nd generation servo high-speed motor, delivering ultra-fast opening speeds as low as 0.9 seconds, making it ideal for high-traffic scenarios like parking lots, highways, toll stations, and commercial premises. With a compact, durable design and intelligent control system, it seamlessly regulates vehicle access, enhances security, and optimizes traffic management efficiency for global customers.
Key Specifications & Technical Parameters
Adaptable Boom Length: 3M-6M (customizable for straight, folding, or fence arms)
Product Dimensions: 340×298×928×2.0 (MM)
Driving Method: 2nd Gen Servo Motor (3000R/MIN no-load speed)
Running Speed: 0.9S-8S (fully adjustable)
Rated Power: 200W
Power Supply: AC200V/AC110V 50/60Hz
Working Temperature: -35℃~+85℃ (suitable for extreme weather)
Humidity: ≤90%
Protection Class: IP54 (dustproof & waterproof for outdoor use)
Remote Control Distance: ≤100M (open & sunny weather)
Material: High-strength galvanized steel housing, aluminum alloy boom with anti-rust coating
Standard Color: Orange housing + white boom with red reflective strips (customizable RAL colors available)
Core Advantages
✅ Ultra-Fast Operation: 0.9S minimum opening speed eliminates traffic jams in busy parking lots and toll stations
✅ Patented Servo Technology: 2nd gen servo motor ensures low noise, high torque, and long service life (≥5 million cycles)
✅ Comprehensive Safety Features: Obstacle auto-reverse, loop detector/radar anti-collision, infrared photocell sensor, and power-off manual operation
✅ Intelligent Control: Adjustable speed, limit angle, and direction; supports RS485 communication, traffic light output, and fire linkage
✅ Wide Application: Perfect for parking lots, highways, residential communities, industrial parks, and toll stations
Contact Information
Business Manager: Zoe Lee
Company: Shenzhen Wonsun Machinery & Electrical Technology Co., Ltd.
Email: zoe@wonsunbarrier.com
WhatsApp: +86 13537818437
Wechat: Zoelee0315
Factory Address:
1st Floor, Zhigu, No. 2-10, South jinlong Avenue, Shahu Community, Biling Street, Pingshan District, Shenzhen, China.
Zip Code: 518118
