DC Brushless Motor Vehicle Barrier Gate With LED Speed & Motion Control

Name: DC Brushless Motor Vehicle Barrier Gate With LED Speed & Motion Control
Brand: Shenzhen Wonsun Machinery & Electrical Technology Co. Ltd
SKU: DZ-2411
Price: 300.00 USD
Availability: InStock

제품 세부 정보

Place of Origin: China

브랜드 이름: WONSUN

인증: CE

Model Number: DZ-2411

지불 및 배송 조건

Minimum Order Quantity: 1PC

가격: 협상 가능

Packaging Details: vehicle Barrier Gate Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

가장 좋은 가격 을 구하라

지금 연락하세요

사양

설명

사양

강조하다:
                                                                                                                                                                                                                                                                                                                                                                                                      Brushless Motor Vehicle Barrier Gate, LED Vehicle Barrier Gate, Speed Motion Control Vehicle Barrier Gate


Running speed:	1.5sec-6sec speed adjustable	Driving method:	DC brushless motor
Brand:	WONSUN Barrier	IP:	54
Rated power：:	90W	Housing Size:	330268965mm

Running speed:	1.5sec-6sec speed adjustable
Driving method:	DC brushless motor
Brand:	WONSUN Barrier
IP:	54
Rated power：:	90W
Housing Size:	330268965mm

설명

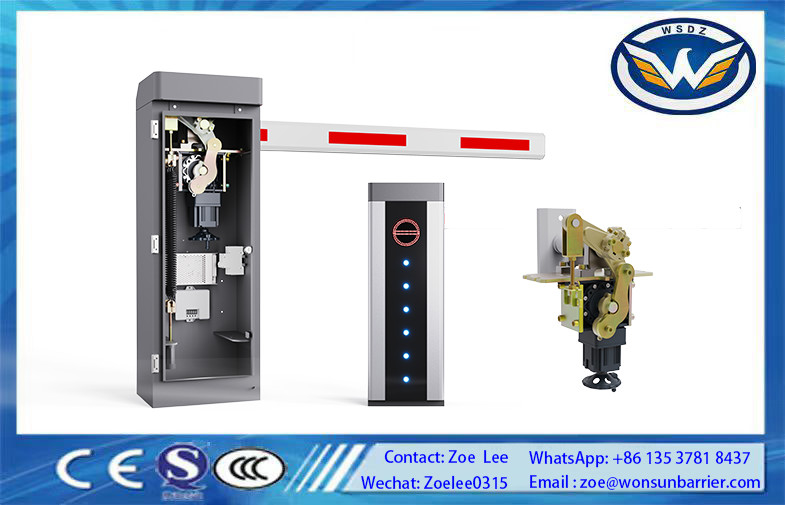

DC Brushless Motor Vehicle Barrier Gate With LED Speed & Motion Control

DC Brushless Motor Vehicle Barrier Gate With LED

I. Features

1. Customizable Operational Functions

Speed & Motion Control: The operation speed is adjustable, ranging from 1.5s to 8s, and users can fine-tune the slow-up and slow-down settings, ensuring smooth and controlled barrier arm movements.

Positioning & Safety: The limit angle can be precisely adjusted. In case of a power failure, the barrier arm allows for manual operation. Additionally, the device features an arm auto-reverse function and a delay arm drop function for enhanced safety.

Intelligent Signal Input/Output: It supports multiple IO signal functions, including infrared photocell sensor input, loop detector and radar anti-collision signal input, up/down/stop control input, traffic light signal output, and up/down in-place signal output. The loop detector offers both normally open and normally closed functions, and the IO port enables single-key cycle up and down operation.

2. Anti-Tampering & Monitoring

Secure Remote Control: Equipped with a 418 frequency learning code anti-copy remote controller, ensuring secure access and preventing unauthorized operation.

Anti-Evasion & Counting: The one car and one arm feature effectively prevents toll evasion, while the counting (fleet) function enables accurate traffic flow monitoring.

3. Expandable Options

Power Backup: Supports 24V storage battery input, and with an additional power storage module, it can achieve automatic lifting during power outages.

Collision Warning (Optional): A collision warning function is available as an optional feature (additional fee required for installing the alarm and sensors), providing extra protection.

II. Technical Specifications

Parameter	Specification
Operating Temperature	-30°C to +80°C
Rated Voltage	DC24V
Operating Speed	1.5s - 8s
Rated Current	5A
Rated Power	90W
No-load Speed	1850rpm
Rated Speed	1400rpm
Rated Torque	59.6N·m
Relative Humidity	≥85%
Remote Control Range	≤50 meters (clear, sunny weather)
Protection Level	IP54
Maximum Arm Length	6m

III. Safety Features

1. Design Excellence

Electromechanical Integration: The advanced electromechanical integration hoisting design ensures a compact structure, facilitating quick assembly and easy maintenance.

Precision Manufacturing: Utilizing advanced mold production techniques, the product offers high precision, strong consistency, rapid production efficiency, and reliable quality.

Gear Transmission: The two-stage gear and worm gear variable speed transmission design provides high precision, long service life, and manual gate opening during power failures. It boasts advantages such as no blockage, no oil leakage, high torque, low noise, and can operate stably at -35°C.

2. Component Innovation

Brushless Motor: The advanced brushless motor design results in low power consumption, high efficiency, minimal heat generation, and a wide speed regulation range, enabling swift and smooth barrier gate operation.

Hall Limit: With the advanced Hall limit design, automatic full-automatic limit detection eliminates the need for debugging. It offers high precision and real-time motor force and speed monitoring, enhancing the smoothness of barrier gate movements.

Structural Design: The new arc-shaped three-link structure simplifies anti-sagging and anti-lifting rod balance adjustment, ensuring better anti-lifting rod performance.

3. Control Superiority

Powerful Controller: The advanced brushless gate-specific controller features a powerful integrated chip drive, fast processing speed, large memory, excellent control effect, and high automation. Powered by a low voltage 24V supply, it is suitable for global voltage standards, ensuring safety and reliability.

This barrier gate combines cutting-edge technology, robust safety features, and user-friendly operation, making it an ideal solution for various access control applications.
